Monocrystalline & Polycrystalline Germanium Ingots for Optical and Semiconductor Manufacturing

Firebird Optics supplies high-purity Germanium ingots for the optical, infrared imaging, defense, aerospace, semiconductor, and scientific research industries. Whether you require stock monocrystalline Germanium, polycrystalline Germanium, or custom-sized ingots manufactured to your specifications, we provide dependable material for both prototype and production applications.

Our Germanium ingots are available in a variety of standard dimensions and can also be supplied as custom rectangular blocks, cylindrical rods, or near-net-shape blanks to maximize material utilization and reduce machining costs. From small laboratory quantities to large production lots, Firebird Optics can support your Germanium material requirements with fast quotations and responsive customer service.

Germanium remains one of the world's most important infrared optical materials due to its excellent transmission in the 2-14 μm wavelength range, high refractive index, and favorable mechanical properties. Beyond optics, high-purity Germanium is also a critical semiconductor material used for specialty electronic devices, infrared detectors, gamma-ray detectors, and advanced photovoltaic technologies.

Stock Germanium Ingots

Firebird Optics maintains inventory of both:

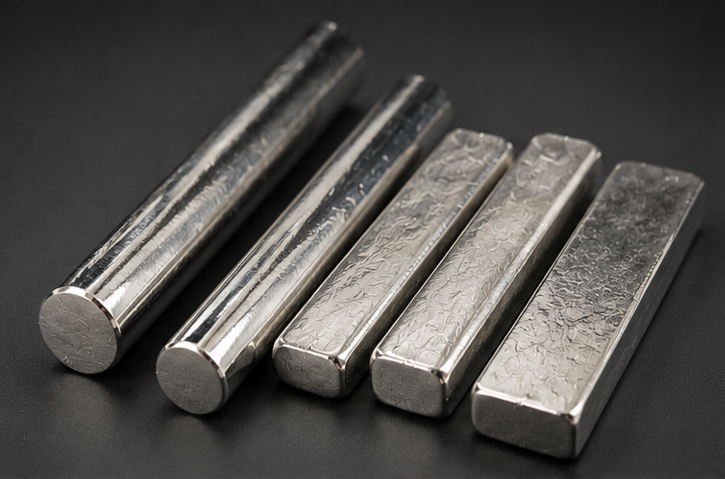

• Monocrystalline Germanium Ingots

• Polycrystalline Germanium Ingots

Available in numerous sizes including:

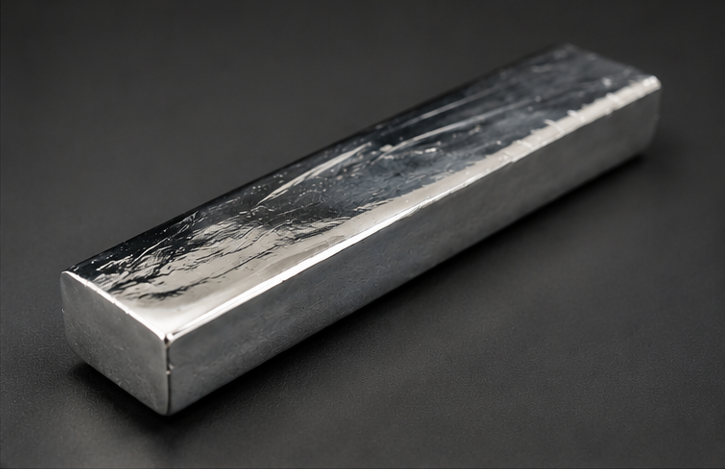

• Rectangular ingots

• Square ingots

• Cylindrical rods

• Custom dimensions

• Customer-supplied drawings

• Near-net-shape material for machining

Whether you need a single prototype ingot or production quantities measured in hundreds of kilograms, we can provide material tailored to your manufacturing process.

Custom Germanium Ingot Sizes

Every manufacturing process is different.

Instead of purchasing oversized material and paying for unnecessary machining waste, Firebird Optics can provide custom-sized Germanium ingots manufactured specifically for your application.

Common custom configurations include:

• Square cross sections

• Rectangular blocks

• Large optical billets

• Cylindrical rod ingots

• Wafer-grade feedstock

• Near-net optical blank material

• Semiconductor manufacturing feedstock

Custom sizing can significantly reduce:

• Material waste

• Diamond machining time

• Grinding costs

• Sawing losses

• Overall manufacturing expense

Monocrystalline Germanium Ingots

Monocrystalline Germanium consists of one continuous crystal lattice extending throughout the entire ingot.

This highly ordered crystal structure provides extremely uniform physical, optical, and electrical properties, making it the preferred material for demanding optical and semiconductor applications.

Typical characteristics include:

• Single crystal structure

• Excellent crystallographic uniformity

• Superior optical homogeneity

• Controlled resistivity

• High infrared transmission

• Excellent machinability

• Tight crystallographic orientation control

• Low defect density

Monocrystalline Germanium is commonly supplied with specified crystal orientations such as (111) or (100), depending upon the intended optical or semiconductor application.

Typical Applications

Monocrystalline Germanium is widely used for:

• Infrared lenses

• Thermal imaging optics

• Night vision systems

• FLIR optics

• Optical windows

• Infrared domes

• Beam splitters

• Semiconductor wafers

• Radiation detectors

• Gamma-ray detectors

• Space optics

• Military optical systems

• Precision infrared instrumentation

Because the material properties remain highly consistent throughout the crystal, monocrystalline Germanium is generally selected whenever optical performance or semiconductor device quality is critical.

Polycrystalline Germanium Ingots

Polycrystalline Germanium consists of numerous individual crystal grains joined together throughout the material.

While it lacks the continuous crystal structure of monocrystalline Germanium, polycrystalline material offers an excellent solution for many industrial applications where a single crystal is not required.

Characteristics include:

• Multiple crystal grains

• High chemical purity

• Excellent starting material

• Good machinability

• Cost-effective manufacturing feedstock

• Available in large sizes

High-purity polycrystalline Germanium is frequently used as feedstock for producing monocrystalline Germanium crystals through crystal growth processes and is also suitable for many industrial chemical and materials applications.

Typical Applications

Polycrystalline Germanium is commonly used for:

• Crystal growth feedstock

• Zone refining

• Semiconductor manufacturing

• Chemical precursor production

• Research laboratories

• Material development

• Infrared material processing

• Recycling and remelting operations

Monocrystalline vs. Polycrystalline Germanium

PropertyMonocrystallinePolycrystallineCrystal StructureSingle crystalMultiple grainsOptical UniformityExcellentGoodSemiconductor ApplicationsExcellentFeedstock primarilyInfrared OpticsIdealLimitedCrystal OrientationControlledRandomPrecision Optical ComponentsYesGenerally notRemeltingYesYesOptical Blank ProductionYesYes

Both materials play an important role within the Germanium supply chain, with polycrystalline Germanium often serving as the raw material from which monocrystalline crystals are grown.

Germanium for Optical Blank Manufacturing

One of the most common uses for Germanium ingots is the production of precision optical blanks.

Firebird Optics can supply Germanium ingots specifically sized for machining into:

• Circular blanks

• Rectangular blanks

• Optical windows

• Lens blanks

• Prism blanks

• Beam splitter blanks

• Infrared components

Supplying near-net-shape material helps reduce:

• Diamond saw cutting

• Core drilling

• Grinding

• Lapping

• Material waste

This lowers manufacturing costs while increasing overall yield.

Germanium for Semiconductor Wafer Manufacturing

Germanium ingots are also widely used as feedstock for semiconductor wafer production.

Following crystal growth and machining, the material can be processed into precision wafers used throughout the electronics and photonics industries.

Applications include:

• Semiconductor substrates

• III-V epitaxy

• Solar cell substrates

• Infrared detector substrates

• Electronic research

• Photonics

• Advanced semiconductor devices

Germanium continues to be an important substrate material for specialized optoelectronic and photovoltaic devices due to its favorable electronic properties.

Germanium Can Be Melted or Directly Machined

Depending upon your manufacturing process, Firebird Optics' Germanium ingots can be used in multiple ways.

Direct Machining

Our ingots can be diamond machined directly into:

• Optical blanks

• Lens blanks

• Infrared windows

• Mechanical components

• Custom optical geometries

Remelting

Germanium ingots may also be melted and reprocessed into:

• New crystal growth feedstock

• Custom castings

• Semiconductor materials

• Specialized manufacturing processes

This flexibility allows manufacturers to integrate Germanium into a wide variety of production methods while minimizing waste.

Typical Industries

Firebird Optics supplies Germanium ingots to customers working in:

• Aerospace

• Defense

• Infrared imaging

• Night vision

• Semiconductor manufacturing

• Research laboratories

• Universities

• Optical fabrication

• Spectroscopy

• Scientific instrumentation

• Space technology

• Industrial automation
