Sapphire Viewports for Vacuum Systems: Specifications, Applications, and Flange Selection Guide

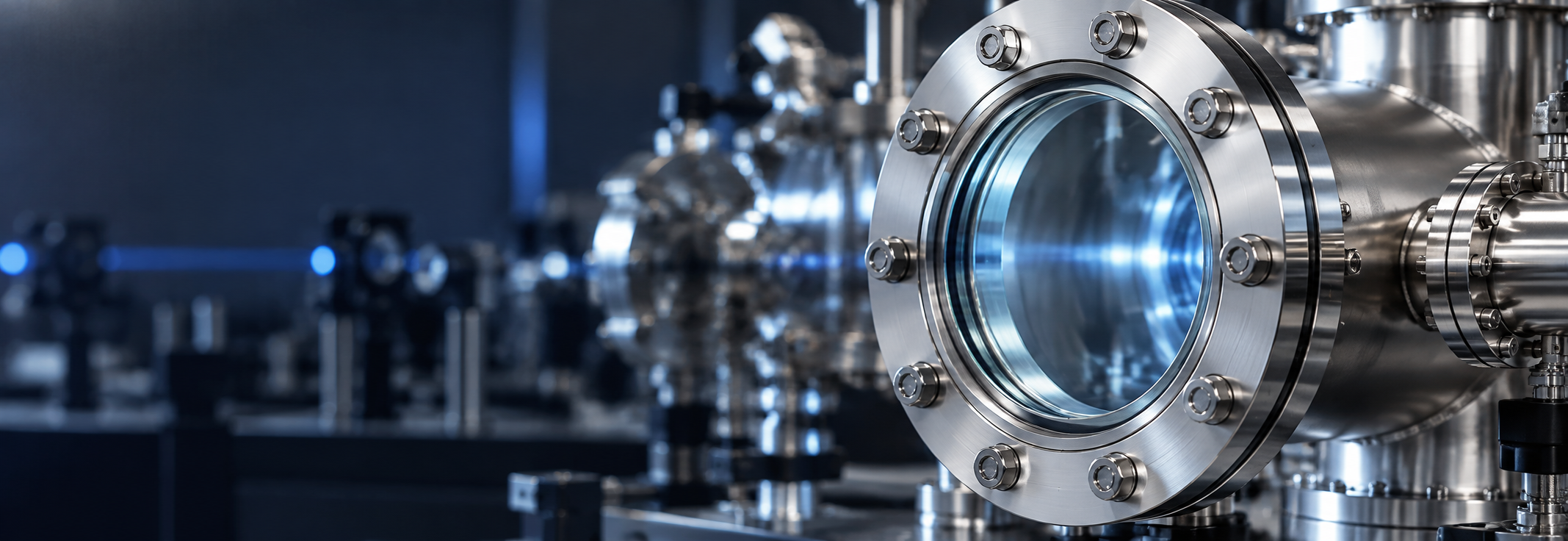

Sapphire viewports are high-performance optical windows designed for high vacuum (HV) and ultra-high vacuum (UHV) environments where durability, optical clarity, and thermal stability are critical. Manufactured from single-crystal sapphire, these viewports provide exceptional transmission from the ultraviolet (UV) through visible to near-infrared (IR) while maintaining mechanical strength in extreme conditions. Their ability to withstand high temperatures, harsh chemicals, and repeated bake-outs makes them a preferred solution across semiconductor, research, and industrial vacuum applications.

Why Choose Sapphire Viewports?

Sapphire is one of the most robust optical materials available, offering a unique combination of properties that outperform standard glass or fused silica in demanding environments:

• Broad Optical Transmission: UV to near-IR (typically ~250 nm to 4 µm)

• Extreme Hardness: One of the hardest materials after diamond, highly resistant to scratching

• Thermal Stability: Capable of operating at high temperatures and repeated bake-outs (up to ~350–450°C depending on design)

• Chemical Resistance: Ideal for corrosive or reactive environments

• Low Thermal Expansion: Reduces stress and improves sealing reliability

These properties make sapphire viewports especially valuable in applications where both optical performance and mechanical durability are essential.

Typical Specifications of Sapphire Viewports

Sapphire viewports are engineered to meet strict vacuum and optical requirements. Typical specifications include:

• Material: Single-crystal sapphire (UV or standard grade)

• Transmission Range: ~0.25 µm to 4 µm

• Surface Quality: 60/40 scratch-dig (typical optical grade)

• Bake-Out Temperature: Up to 350–450°C (design dependent)

• Leak Rate: ≤ 1 × 10⁻¹⁰ mbar·L/s (He)

• Pressure Range: Atmosphere to UHV (~10⁻¹¹ mbar)

• Crystal Orientation: Typically 90° orientation for consistent optical performance

• Flange Materials: Stainless steel (304L, 316L/316LN)

• Available Coatings: AR, BBAR, or custom coatings for specific wavelengths

Custom sizes, thicknesses, and coatings are commonly available to meet application-specific requirements.

Applications of Sapphire Viewports

Due to their durability and optical performance, sapphire viewports are widely used across multiple industries:

Semiconductor & Vacuum Processing

Sapphire viewports are essential in vacuum coating systems, plasma chambers, and semiconductor fabrication tools, where they provide reliable optical access under high temperature and UHV conditions.

Laser & Optical Systems

Their broad transmission range makes them ideal for laser transmission, beam diagnostics, and optical monitoring in UV–IR systems.

Spectroscopy & Analytical Instruments

Used in high-temperature spectroscopy and surface analysis systems, sapphire viewports allow precise measurements without compromising vacuum integrity.

Research & High-Energy Physics

Sapphire is frequently used in UHV research systems, particle physics experiments, and space simulation chambers, where durability and low contamination are critical.

Industrial & Harsh Environments

Applications include heat treatment systems, chemical processing, and high-pressure environments, where sapphire’s resistance to thermal shock and corrosion is essential.

Flange Options: CF vs KF vs ISO

Choosing the correct flange type is critical for system compatibility and performance. Sapphire viewports are commonly available in CF, KF, and ISO flange configurations, each suited to different vacuum levels and applications.

CF (ConFlat) Flanges – For Ultra-High Vacuum (UHV)

• Seal Type: Metal-to-metal seal using copper gasket

• Vacuum Range: UHV (down to ~10⁻¹¹ mbar)

• Temperature Capability: Highest bake-out temperatures

Best Applications:

• Semiconductor fabrication

• Surface science

• Particle physics

• Permanent vacuum systems

Why choose CF?
CF flanges provide the most reliable, leak-tight seal and are ideal when maximum vacuum performance and thermal stability are required.

KF (ISO-KF / Quick Flange) – For Flexible High Vacuum Systems

• Seal Type: Elastomer O-ring with clamp

• Vacuum Range: Rough to high vacuum

• Temperature Capability: Moderate (limited by O-ring)

Best Applications:

• Laboratory setups

• R&D systems

• Systems requiring frequent assembly/disassembly

Why choose KF?
KF flanges are quick to install and remove, making them ideal for modular systems and rapid prototyping.

ISO (ISO-K / ISO-F) Flanges – For Large Vacuum Systems

• Seal Type: O-ring or bolted flange system

• Vacuum Range: High vacuum

• Temperature Capability: Moderate

Best Applications:

• Large vacuum chambers

• Industrial vacuum systems

• Applications requiring larger diameters

Why choose ISO?
ISO flanges are designed for larger-scale systems, offering robust connections and scalability for industrial environments.

Custom Sapphire Viewports

Sapphire viewports can be tailored to meet specific system requirements, including:

• Custom diameters and thicknesses

• Anti-reflective or wavelength-specific coatings

• Non-magnetic designs

• Specialized flange materials or configurations

• Integration into complex vacuum assemblies

Customization ensures optimal performance for specialized applications, from high-power laser systems to advanced research instrumentation.
