Vacuum Viewports

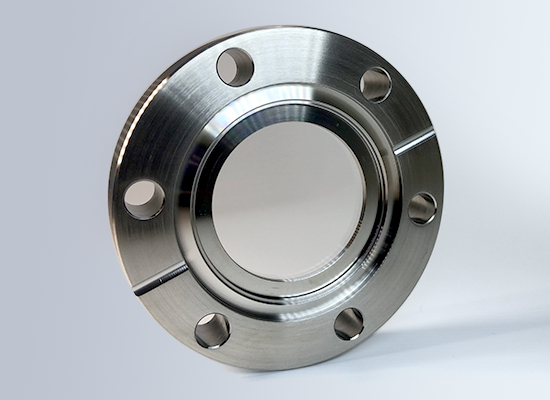

Vacuum viewports are specialized windows or ports integrated into vacuum systems, allowing visual observation or the transmission of light into or out of a vacuum chamber without compromising the vacuum environment. Firebird Optics offers viewports made from glass, fused silica, sapphire, ZnSe, CVD diamond and many more as well as a variety of flanges. All setups are designed to withstand the vacuum pressure and maintain optical clarity. They are sealed with high-quality, vacuum-compatible gaskets or welds to ensure they do not leak.
These viewports are essential in various fields, including materials science, semiconductor manufacturing, and fundamental physics research, where maintaining a controlled vacuum environment is crucial.

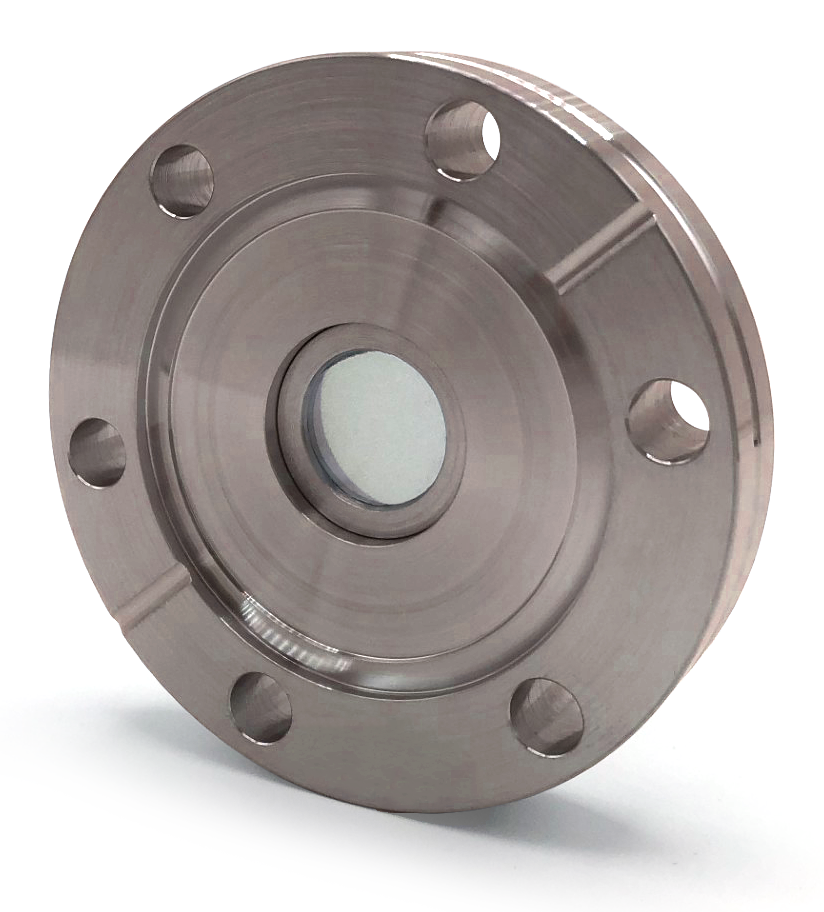

CVD Diamond Optical Viewports
CVD Diamond Optical Viewports
Firebird Optics’ CVD diamond optical viewports represent the highest level of performance for vacuum optical access, combining unmatched durability with exceptional broadband transmission. Manufactured using a chemical vapor deposition (CVD) process, these viewports provide outstanding optical clarity from the ultraviolet through the visible and into the far-infrared, making them ideal for advanced applications such as spectroscopy, THz systems, and high-power laser environments. CVD diamond offers superior hardness, the highest thermal conductivity of any material, and excellent chemical inertness, ensuring reliable performance under extreme temperatures, pressures, and harsh conditions. Engineered for UHV compatibility, these viewports are precision-sealed to maintain vacuum integrity and are available in CF, KF, and ISO flange configurations, with full customization options including size, thickness, coatings, and mounting designs to meet the most demanding scientific, semiconductor, and industrial requirements.
CVD Diamond Optical Viewports for Vacuum Systems: Specifications, Applications, and Flange Selection Guide
Introduction
CVD diamond optical viewports represent the pinnacle of performance for vacuum and ultra-high vacuum (UHV) optical access. Manufactured using advanced chemical vapor deposition (CVD) techniques, these viewports provide a synthetic diamond window with properties approaching those of natural diamond. With exceptional durability, unmatched thermal conductivity, and ultra-broad optical transmission, CVD diamond viewports are ideal for the most demanding environments in scientific research, semiconductor processing, and high-power laser systems.
Why Diamond is the Preferred Material
Diamond is widely regarded as the ultimate optical material due to its combination of extreme physical and optical properties that surpass all other viewport materials:
Ultra-Broad Optical Transmission: From deep UV (~225 nm) through visible, infrared, and into the far-IR and microwave range
Exceptional Thermal Conductivity: Up to ~2000 W/m·K, enabling rapid heat dissipation in high-power systems
Extreme Hardness: One of the hardest known materials, providing unmatched scratch and wear resistance
Low Optical Absorption: Ensures high transmission efficiency even under high laser power
Chemical Inertness: Resistant to corrosive gases and harsh chemical environments
High Mechanical Strength: Allows for thinner, stronger windows with superior durability
These properties make diamond viewports the preferred choice for extreme environments, especially where high power, high temperature, or aggressive conditions would degrade traditional materials like glass or sapphire.
Typical Specifications of CVD Diamond Viewports
Firebird Optics’ CVD diamond viewports are engineered for precision, durability, and vacuum compatibility. Typical specifications include:
Material: Optical-grade CVD diamond
Transmission Range: ~225 nm to >100 µm (UV to far-IR)
Surface Roughness: <30 nm Ra (polished optical finish)
Flatness: Up to λ/4 @ 632 nm
Leak Rate: ≤ 1 × 10⁻¹⁰ mbar·L/s (He)
Pressure Range: Atmosphere to UHV (~10⁻¹¹ mbar)
Operating Temperature:
CF (metal seal): up to ~450–600°C
KF/ISO (O-ring seal): lower limits depending on elastomer
Flange Materials: Stainless steel (304L, 316L/316LN)
Coatings: Optional anti-reflective coatings for wavelength optimization
Custom sizes, thicknesses, and mounting configurations are available for specialized applications.
Applications of CVD Diamond Viewports
High-Power Laser Systems
CVD diamond is ideal for high-power laser applications, including CO₂ and solid-state lasers, due to its low absorption and superior thermal conductivity.
Synchrotron & Beamline Systems
Used in synchrotron radiation facilities, diamond viewports provide excellent optical quality and thermal management in high-energy environments.
Infrared & THz Systems
With transmission extending into the far-IR and THz range, CVD diamond is widely used in advanced spectroscopy, imaging, and sensing systems.
Semiconductor & Plasma Processing
These viewports enable reliable optical monitoring in vacuum chambers, plasma systems, and semiconductor manufacturing tools, where high temperatures and reactive environments are common.
Research & High-Energy Physics
CVD diamond viewports are used in UHV research systems, particle physics experiments, and quantum optics, where stability and optical performance are critical.
Thermal Management Applications
Due to its unmatched thermal conductivity, diamond is also used in heat-spreading and thermal management systems, particularly in high-power electronics and optics.
Custom CVD Diamond Viewports
Firebird Optics offers fully customizable CVD diamond viewports tailored to specific application requirements, including:
Custom diameters and thicknesses
Anti-reflective coatings for UV, IR, or broadband performance
Specialized flange materials and configurations
Re-entrant and complex viewport designs
Customization ensures optimal performance in even the most demanding optical and vacuum environments.
