Semiconductor Wafers
Semiconductor wafers are foundational components in the electronics industry, serving as the substrate for the fabrication of integrated circuits (ICs) and other semiconductor devices. These wafers are typically thin, disc-shaped slices made from a single crystal or polycrystalline material, with silicon being the most widely used due to its excellent semiconductor properties. Silicon wafers play a pivotal role in the production of microelectronics, enabling the creation of the intricate circuitry that powers a vast array of electronic devices.
The manufacturing process of semiconductor wafers involves several critical steps. First, a single crystal ingot of high-purity sapphire, germanium, silicon or silicon carbide is sliced into thin wafers using a precision saw. These wafers undergo a series of chemical and mechanical processes to achieve a smooth, flat surface and consistent thickness. The resulting wafers serve as the canvas for the creation of semiconductor devices through photolithography, etching, and deposition processes.
Semiconductor wafers come in various sizes, with diameters ranging from a few inches to over a foot, and their dimensions play a crucial role in determining the number of devices that can be produced in a single manufacturing run. The wafer's surface is typically polished to an ultra-smooth finish to ensure uniformity in subsequent processes.
These wafers are the platform upon which intricate patterns of transistors, resistors, and interconnects are created during the semiconductor fabrication process. The properties of the semiconductor material, as well as the precision in wafer manufacturing, directly impact the performance and reliability of the electronic components produced. Semiconductor wafers are essential in driving technological advancements across various industries, from consumer electronics to healthcare, automotive, and beyond, making them a critical element in the modern digital age.
Gallium Antimonide (GaSb) Wafers
Gallium Antimonide (GaSb) Wafers
Firebird Optics’ Gallium Antimonide (GaSb) wafers are high-purity, single-crystal semiconductor substrates optimized for mid-infrared (mid-IR) optoelectronic applications. With a direct bandgap of ~0.72 eV, GaSb is uniquely suited for fabricating photodetectors, LEDs, and laser diodes operating in the 1.8–2.6 μm range, as well as serving as a base for advanced III–V epitaxial structures like InAsSb and AlGaSb alloys. These wafers combine excellent lattice matching with other antimonide materials, enabling efficient device fabrication for infrared imaging, gas sensing, thermophotovoltaics, and defense-related IR systems.

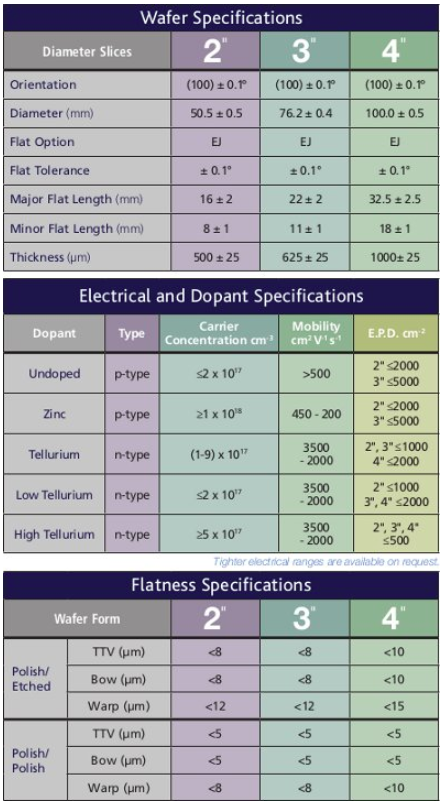

Specs for Gallium Antimonide (GaSb) Semiconductor Wafers:
Gallium Antimonide Wafers: Foundations for Mid-Infrared Semiconductor Innovation
Gallium Antimonide (GaSb) wafers are a cornerstone of modern mid-infrared (mid-IR) semiconductor technology. With their direct bandgap of ~0.72 eV and excellent lattice compatibility with related antimonide alloys, these wafers enable the production of efficient optoelectronic devices beyond the reach of silicon or even gallium arsenide. Their role spans across infrared sensing, thermophotovoltaics, laser technology, and defense applications, making GaSb one of the most strategically important materials in advanced photonics and energy conversion.
Material Properties of GaSb
GaSb belongs to the III–V family of semiconductors and crystallizes in the zinc-blende structure. Its physical and electronic properties uniquely position it for mid-IR device platforms:
Bandgap: ~0.72 eV at 300 K (direct bandgap, ideal for light emission and absorption).
Lattice Constant: ~6.095 Å, offering close lattice matching with InAs, AlSb, and ternary/quaternary alloys such as InGaSb or AlGaInSb.
Transparency Range: 0.9 μm to ~16 μm, covering visible-near IR through the mid-IR.
Thermal Stability: Moderate thermal conductivity, requiring optimized packaging and thermal management in high-power applications.
Electron Properties: Lower mobility than GaAs, but optimized for mid-IR optoelectronic use.
These attributes make GaSb a preferred substrate for multi-layer epitaxial stacks where material quality and interface integrity dictate device performance.
Manufacturing Process
1. Crystal Growth
GaSb crystals are grown from ultra-high-purity gallium and antimony sources (6N–7N). To counter antimony’s volatility during growth, controlled techniques are employed:
LEC (Liquid Encapsulated Czochralski): Large boules are grown under boron oxide encapsulant, reducing antimony loss and ensuring uniformity.
VGF (Vertical Gradient Freeze): Offers superior control over defect density and dislocations, often achieving etch pit densities (EPD) below 1,000 cm⁻².
2. Wafer Processing
Once grown, the ingots are fabricated into wafers through:
Precision Slicing: Creating wafers in standard diameters (2″, 3″, 4″).
Edge Beveling: Minimizes mechanical stress and prevents chipping.
Lapping & Polishing: Achieves flatness and prepares wafers for epitaxy.
Surface Finishing: Supplied as as-cut, etched, polished, or epi-ready for MBE and MOCVD.
3. Doping & Conductivity
GaSb wafers can be tailored electrically for specific device needs:
n-type: Te, Se, or S doping.
p-type: Zn, Ge, or Si doping.
Semi-insulating: Controlled defect management or compensation doping for specialized electronic applications.
Applications of GaSb Wafers
Infrared Optoelectronics
GaSb substrates are the basis for mid-IR LEDs, laser diodes, and detectors. These devices are critical in:
Gas sensing (e.g., CO₂, CH₄, NOx monitoring).
Spectroscopy for environmental and industrial analysis.
Defense and surveillance (night vision, IR imaging systems).
Thermophotovoltaics (TPV)
GaSb’s bandgap aligns well with thermal radiation spectra, enabling TPV cells that convert waste heat into usable electricity. This makes GaSb crucial in both industrial energy recovery and space-based power systems.
Research & Advanced Heterostructures
Because of its excellent lattice match, GaSb serves as a substrate for growing complex antimonide alloys such as InAsSb, AlGaSb, and AlGaInSb. These heterostructures extend device operation deeper into the infrared, enabling new research in long-wavelength IR detectors and quantum devices.
High-Frequency Electronics
While not as widely adopted as GaAs for RF, GaSb’s properties allow it to support niche heterojunction transistor and high-speed circuit applications where mid-IR integration is beneficial.
Typical Specifications
Diameters: 2″, 3″, 4″ (50 mm, 75 mm, 100 mm).
Orientations: <100>, <111>, optional offcuts for epitaxial optimization.
Conductivity Types: n-type, p-type, semi-insulating.
Defect Density: EPD < 1,000 cm⁻² for high-quality wafers.
Surface Finish: As-cut, etched, polished, or epi-ready CMP with ultra-smooth Ra.
